20090220

1Hz Clock Generator using PIC12F675

Based on the idea from http://www.josepino.com/pic_projects/?timebaseI have created a 1Hz Clock Generator. I use PIC12F675 as it's available locally. Its price is just about US$1.
The concept is using 32.768kHz crystal as a clock for the PIC. Therefor, the internal instruction clock is 32768/4 = 8192 Hz. By using the 16 bit Timer1 to count the instruction clock cycles, the interrupt will occur every 8 second. This period can be reduced by setting initial value of the Timer1 (TMR1H:TMR1L). I have to make Timer1 to count up to 8192 for generating overflow interrupt every 1 second. To make Timer1 count up to 8192, the initial value of TMR1 must be 65536-8192 = 57344 or 0xE000. This means TMR1H = 0xE0 and TMR1L = 0x00. In this case, I need to set only the TMR1H=0xE0 and let TMR1L runs continuously. By changing the initial value of Timer1, I can generate almost any frequencies.

An application for this project is a precise 1Hz blinking LED signal :) ha ha. I know that it's not useful but I think it's fun to look at (am I crazy?). Another application is a precise 1Hz time base for a clock.

The source code is written in MikroC.

// PIC12F675
// 1Hz Time Base Osc.
// Timer1 Module
// 32.768 KHz
unsigned short tick;
void Init ();
void interrupt ()
{
if (PIR1.TMR1IF)
{
TMR1H = 0xE0;
PIR1.TMR1IF = 0;
tick = 1;
}
}
void main ()
{
tick = 0;
//Initialize Ports and Timer1 Module
Init ();
while (1)
{
if (tick)
{
tick = 0;
GPIO = (1 << 2);
}
if (TMR1H > 0xF0)
{
GPIO = 0;
}
}
}
void Init ()
{
TRISIO = 0;
//Make all pins as output ports
GPIO = 0;
//Use Timer1 module
INTCON.GIE = 1;
INTCON.PEIE = 1;
T1CON = 0x01;
//Overflow every 8192
TMR1H = 0xE0;
TMR1L = 0x00;
// Enable TMR1 interrupt
PIE1.TMR1IE = 1;
}



The schematic is as the following image.


1Hz Clock generator using PIC12F675


The PCB:



3D version:

20090216

Wonderful slow-motion stabilized video montage of New York

I'm not sure who Vincente Sachuc is, but he's certainly got a career in cinematography if he wants one. This makes me want to get back into creative film work rather than technical videos. He mentions this is captured with a Casio EX-F1 at 300 fps and edited at 24 fps. A skateboard and a Steadicam Merlin help with the smooth traveling shots. Of course, you could buy one of my Poor Man's Steadycams at 5% of the cost of a Merlin =o). Colorization done in Premiere and Photoshop.


New York 2008 from Vicente Sahuc on Vimeo.

Wonderful slow-motion stabilized video montage of New York

I'm not sure who Vincente Sachuc is, but he's certainly got a career in cinematography if he wants one. This makes me want to get back into creative film work rather than technical videos. He mentions this is captured with a Casio EX-F1 at 300 fps and edited at 24 fps. A skateboard and a Steadicam Merlin help with the smooth traveling shots. Of course, you could buy one of my Poor Man's Steadycams at 5% of the cost of a Merlin =o). Colorization done in Premiere and Photoshop.


New York 2008 from Vicente Sahuc on Vimeo.

Bermain dengan Timer 1 AVR


Yang namanya timer sering kali kita gunakan. Misal saat mau nampilin rpm, kita butuh timer sebagai acuan. Atau untuk menghidupkan device dengan interval tertentu.

AVR yang saya pakai sebagai contoh adalah ATmega 8535. AVR ini memilki 3 timer. Yaitu:

  1. TIMER 0 (8 bit)
  2. TIMER 1 (16 bit)
  3. TIMER 2 (8 bit)

Apa yang dimaksud timer 8 bit dan 16 bit?

timer 8 bit adalah timer yg bisa mencacah/menghitung sampai maksimal nilai 0xFF heksa (dalam biner = 1111 1111). Pada ATmega 8535 ada 2 timer jenis ini yaitu TIMER 0 dan 2

Klo yg 16 bit nilai maksimalnya 0xFFFF. Pada ATmega8535 timer jenis 16 bit adalah TIMER 1. Artikel kali ini akan membahas TIMER 1.

Dulu ak disaranin klo timer mau presisi harus memakai bahasa assembly. Hitung jumlah instruksi yg kita tulis. lalu hitung lama waktunya. Hmmmm.. ribet bener...

Untung aja nemu artikel tentang interrupt timer. Dengan Interrupt kita gak perlu susah2 menghitung berapa waktu yang di perlukan untuk meng eksekusi seluruh program kita. Karena saat program dijalanin, timer juga jalan sendiri (digerakkan XTAL). Trus saat nilai tercapai terjadilah interrupt timer.

Register yg biasa saya gunakan untuk menset nilai Timer1 adalah register TCNT, register TCNT sendiri dibagi dua: TCNT 1 H dan TCNT 1 L.

rumus yang digunakan adalah :

TCNT = (1+0xFFFF) - (waktu *( XTAL / prescaler) )

waktu --> waktu yg kita inginkan

XTAL --> frekuensi xtal yg dipakai

prescaler --> nilai prescaler

Apa nilai prescaler itu?

Timer membutuhkan clock source. Biasanya clock source yg saya pakai adalah clock sistem (XTAL). Dan kita bisa menset besarnya nilai ini. Maximum sama dengan XTAL, minimum XTAL/1024. Nah nilai pembagi (1024) ini yg disebur nilai prescaler.

Macam2 nilai prescaler yg diijinkan: 1, 8 , 64 , 256 , 1024

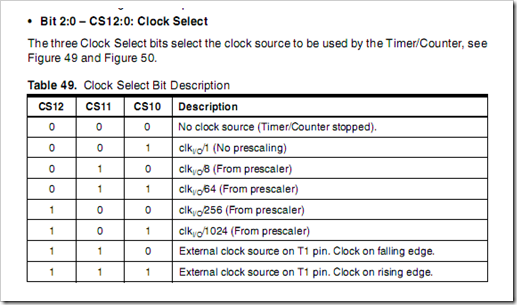

Untuk mengubah nilai prescaler timer 1, kita harus merubah nilai register TCCR1B bit 0...2


gambar diatas di ambil dari data sheet ATmega 8535 hal.113

Contoh Program:

Mengakses Timer 1 dengan interval waktu 1 detik.

#include <mega8535.h>
#include <stdio.h>

// LCD di PORT B
#asm
.equ __lcd_port=0x18
#endasm
#include <lcd.h>


unsigned char buff[30];
unsigned long detik;


// sub rutin saat terjadi interrupt Timer 1
interrupt [TIM1_OVF] void timer1_ovf_isr(void)
{
TCNT1H=0xC2;
TCNT1L=0xF7;
detik++;
lcd_clear();
sprintf(buff,"detik %d",detik);
lcd_puts(buff);
}

void main(void)
{

// Timer/Counter 1 initialization
// Clock source: System Clock
// Clock value: kHz
// Mode: Normal top=FFFFh
// OC1A output: Discon.
// OC1B output: Discon.
// Noise Canceler: Off
// Input Capture on Falling Edge
TCCR1A=0x00;
TCCR1B=0x04;
TCNT1H=0xC2;
TCNT1L=0xF7;
OCR1AH=0x00;
OCR1AL=0x00;
OCR1BH=0x00;
OCR1BL=0x00;

// Timer(s)/Counter(s) Interrupt(s) initialization
TIMSK=0x04;

// Analog Comparator initialization
// Analog Comparator: Off
// Analog Comparator Input Capture by Timer/Counter 1: Off
// Analog Comparator Output: Off
ACSR=0x80;
SFIOR=0x00;

// LCD module initialization
lcd_init(16);

// Global enable interrupts
#asm("sei")
lcd_putsf("wait...");
while (1)
{

};
}

Program di atas menggunakan timer 1 untuk menambah nilai variabel "detik" setiap 1 detik sekali. Kemudian menampilkan hasilnya ke LCD.

ayo kita mutilasi code program di atas:

yang akan kita bahas dari program diatas adalah code yang kliatan ruwet aja. Klo yg biasa silahkan lihat di artikel2 sebelumnya .. ^_^

**************

// LCD di PORT B
#asm
.equ __lcd_port=0x18 -------------->> mendefinisakan bahwa LCD di hubungkan ke PORT B
#endasm

#include <lcd.h> --------------->> library untuk fungsi2 akses LCD

**************

// sub rutin saat terjadi interrupt Timer 1
interrupt [TIM1_OVF] void timer1_ovf_isr(void)
{
TCNT1H=0xC2; ----------------------> nilai didapat dari rumus ......
TCNT1L=0xF7; ----------------------> ....agar Timer 1 bernilai 1 detik
detik++;
lcd_clear();
sprintf(buff,"detik %d",detik); --------------> memasukkan karakter-karakter ke variabel buff
lcd_puts(buff); --------------------------->menampilkan karakter-karakter variabel buff ke LCD
}

Saat kita ingin menampilkan sederet tulisan ke LCD maka kita harus memasukkan karakter-karakter tulisan itu ke suatu variabel array (dalam program di atas adalah variabel "buff"). Baru kemudian data yg ada di variabel array kita tampilkan ke LCD

***************

void main(void)
{

// Timer/Counter 1 initialization
// Clock source: System Clock
// Clock value: kHz
// Mode: Normal top=FFFFh
// OC1A output: Discon.
// OC1B output: Discon.
// Noise Canceler: Off
// Input Capture on Falling Edge

TCCR1A=0x00;
TCCR1B=0x04; ------------------> prescaler 256
TCNT1H=0xC2; ------------------> nilai didapat dari rumus ......
TCNT1L=0xF7; ------------------> ....agar Timer 1 bernilai 1 detik


inget rumus: TCNT = (1+0xFFFF) - (waktu *( XTAL / prescaler) )

waktu yg dinginkan adalah 1 detik , XTAL yg saya pakai adl 4 Mhz dan nilai prescaler=256

Jadi,...............

TCNT= (1+65535)-(1detik * (4.000.000/256))

=65536 - (1detik*15625)

=65536-15625

= 49911 (desimal)

= C2F7 (heksadesimal)

Nilai untuk TCNT yang di dapat dari rumus bernilai 16bit (4 angka Heksadesimal), 2 angka yg di depan kita masukkan ke TCNT1H dan 2 angka yg dibelakang kita masukkan ke TCNT1L

****************

// Timer(s)/Counter(s) Interrupt(s) initialization
TIMSK=0x04; ----------------->Timer/Counter1, Overflow Interrupt Enable

code di atas hanya men set  "Overflow Interrupt Timer 1". Interrupt baru aktif saat ada perintah:          #asm("sei")

****************

// Analog Comparator initialization
// Analog Comparator: Off
// Analog Comparator Input Capture by Timer/Counter 1: Off
// Analog Comparator Output: Off
ACSR=0x80; ------------> me OFF kan analog comparator
SFIOR=0x00;

jika tidak dipakai, sebaiknya analog comparator di OFF. Untuk menghemat pemakaian daya. Hal ini sangat penting jika sumber daya yg digunakan memakai baterai.

*******************

// LCD module initialization
lcd_init(16);  ----------------------> inisialisasi LCD 16*2

*******************

// Global enable interrupts
#asm("sei") ----------------------> meng aktifkan Interrupt-interrupt yg sudah di set sebelumnya

Nah... pada saat ini interrupt Timer 1 aktif

*******************

lcd_putsf("wait...");  --------------> menampilkan tulisan wait.. ke LCD

*********************

while (1)
{

};

Program ini yg dijalankan oleh microcontroller... mikro hanya muter disini di dalam while(1){...};

 (inget !!! infinite looping di artikel BASIC I/O ).. Jadi mikro sama sekali tidak mengeksekusi perintah.

lha kok bisa????? bingungg....  ~_~ !

Disinilah bedanya pake Interrupt!!.

saat terjadi Interrupt Timer1, alur program mikro akan meloncat ke:

// sub rutin saat terjadi interrupt Timer 1
interrupt [TIM1_OVF] void timer1_ovf_isr(void)

{

......................................

......yoww..... program yg ada  disini yg dijalanin...

......................................

}

setelah program yg ada di sub rutin INTERRUPT dijalankan, maka alur program mikro akan muter2 lagi di infinite looping

******************





jika ada yg kurang dari program di atas mohon kritik dan sarannya

any questions?? post comment on this blog: http:\\avrku.blogspot.com

or send email to: zigan@ymail.com

CodeVisionAVR C Compiler is copyright by Pavel Haiduc, HP InfoTech s.r.l.
AVR is a registered trademark of Atmel Corporation.

20090210

Changig Blog

My New articles in PIC Microcontoller will publish on My Native Blog

http://shibuvarkala.blogspot.com

Proteus implementation of RTC with ds1307 and Mikroc

Using EEprom in 16f877a using Mikroc etc
