The LEDs on the MCB2140

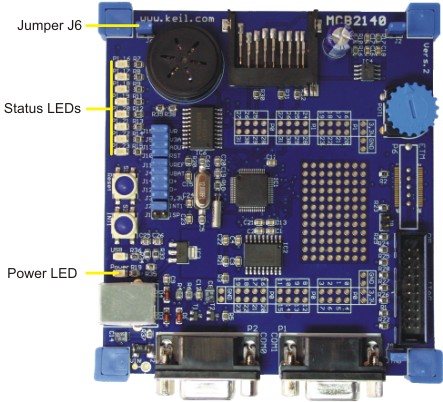

The LEDs on the MCB2140 board are:

  • The POWER LED indicates that power is present on the board.
  • P1.16 - P1.23 connect to eight Port 1 pins when jumper J6 is installed. These LEDs can display program status while testing your applications. Removing Jumper J6 disables the LED drivers.

MCB2140 Board
